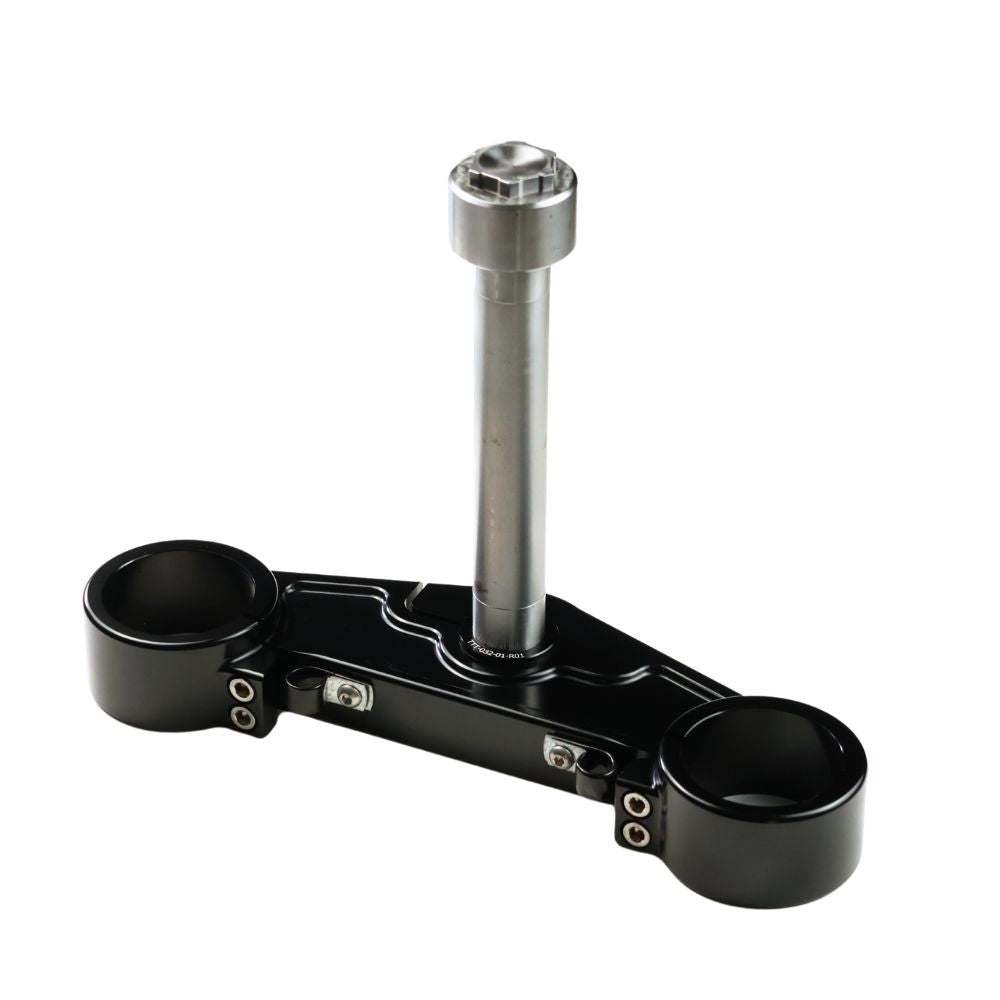

OG 2023-Up Touring CVO Lower Triple Tree kit

Name: OG 2023-Up Touring CVO Lower Triple Tree kit
Brand: Original Garage Moto
SKU: H-AC-121-BK
Price: 559.95 USD
Availability: InStock

H-AC-121-BK

$559.95

Our OG 2023-Up Touring CVO Lower Triple Tree kit will allow you to complete your Triple Trees set in conjunction with our OG Touring CVO Top Triple Tree & OG Touring CVO Drop 1'' Top Triple Tree. Engineered to maximize performance & rigidity featuring taller fork tube clamping sections and a thicker cross-section over the stock Tree.

It also features brake line(s) management clamps for that clean install and factory look. This premium Lower Tree kit is available in all colors, including chrome finishes.

Features

Precision CNC machined 6061 T6 aluminum tree

Stem axle & nut machined from 4140 Chromoly Steel for superior strength

Designed to match the OEM rake angle and triple tree offset ensuring a straightforward installation and maximizing performance

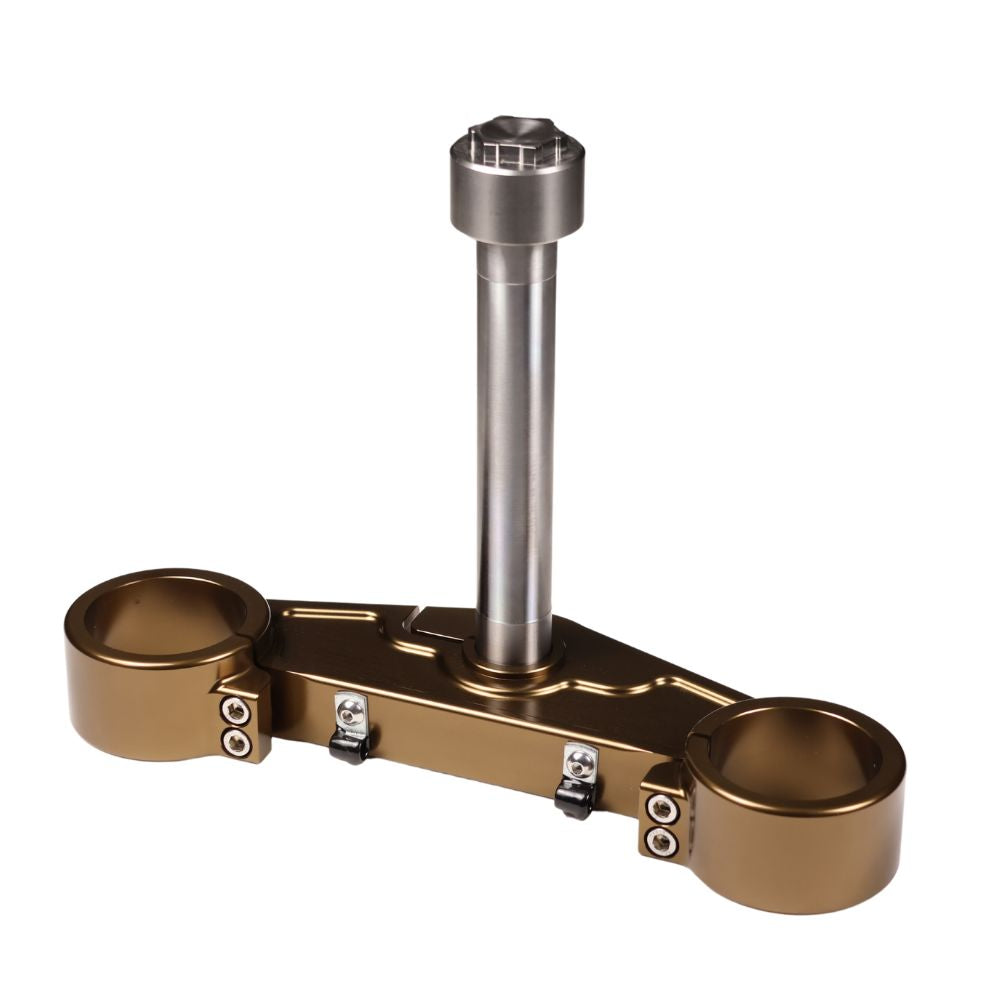

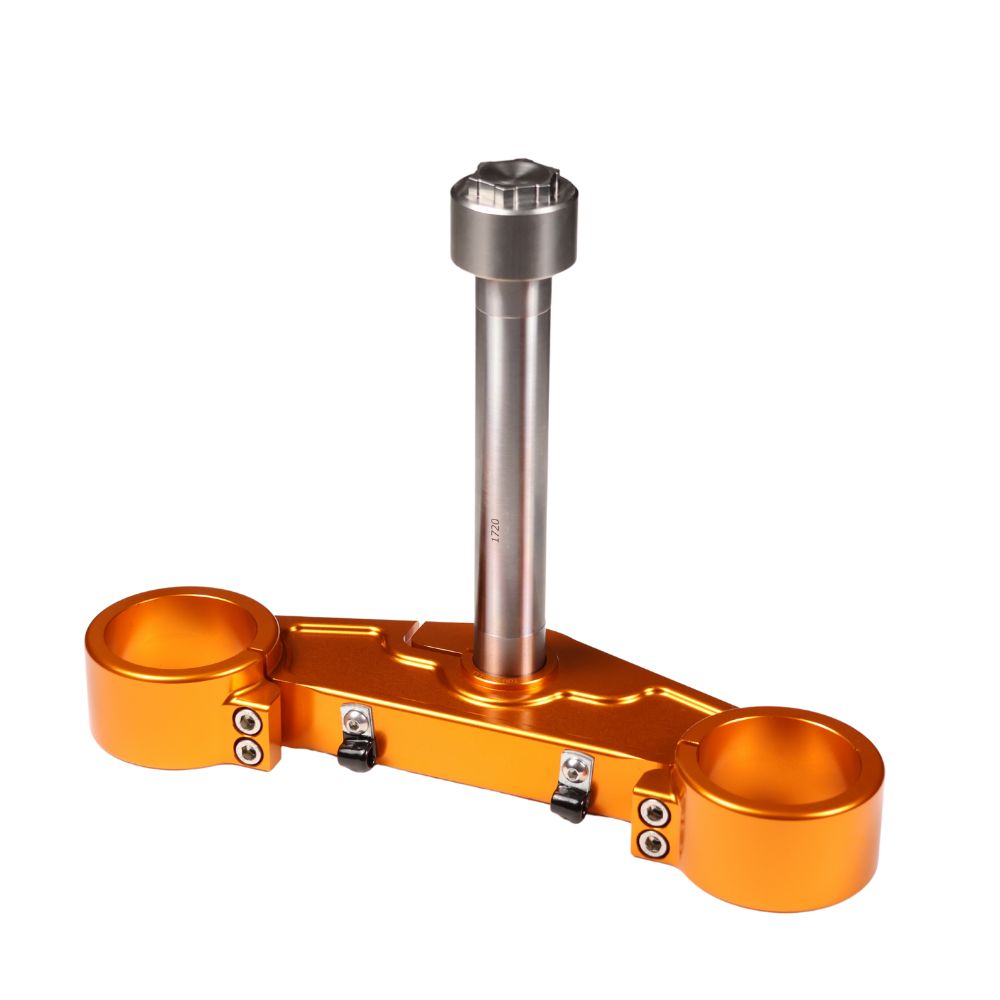

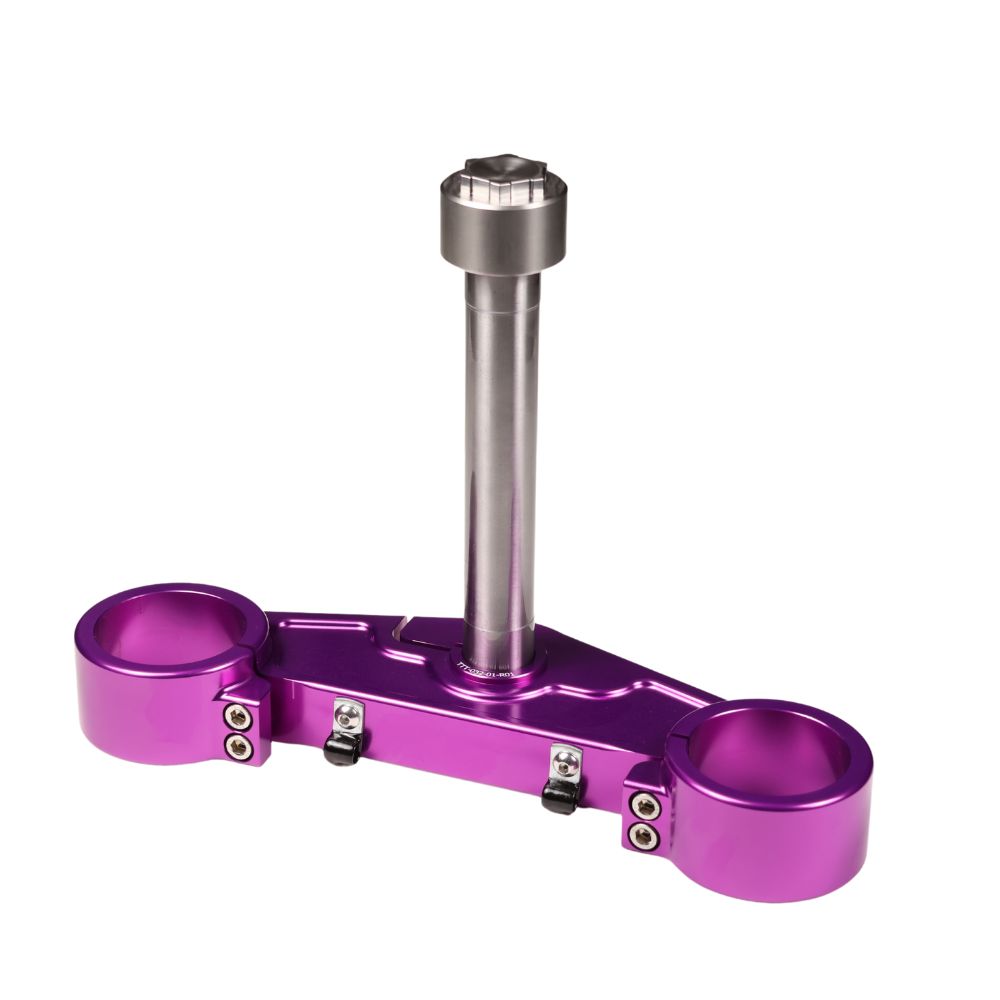

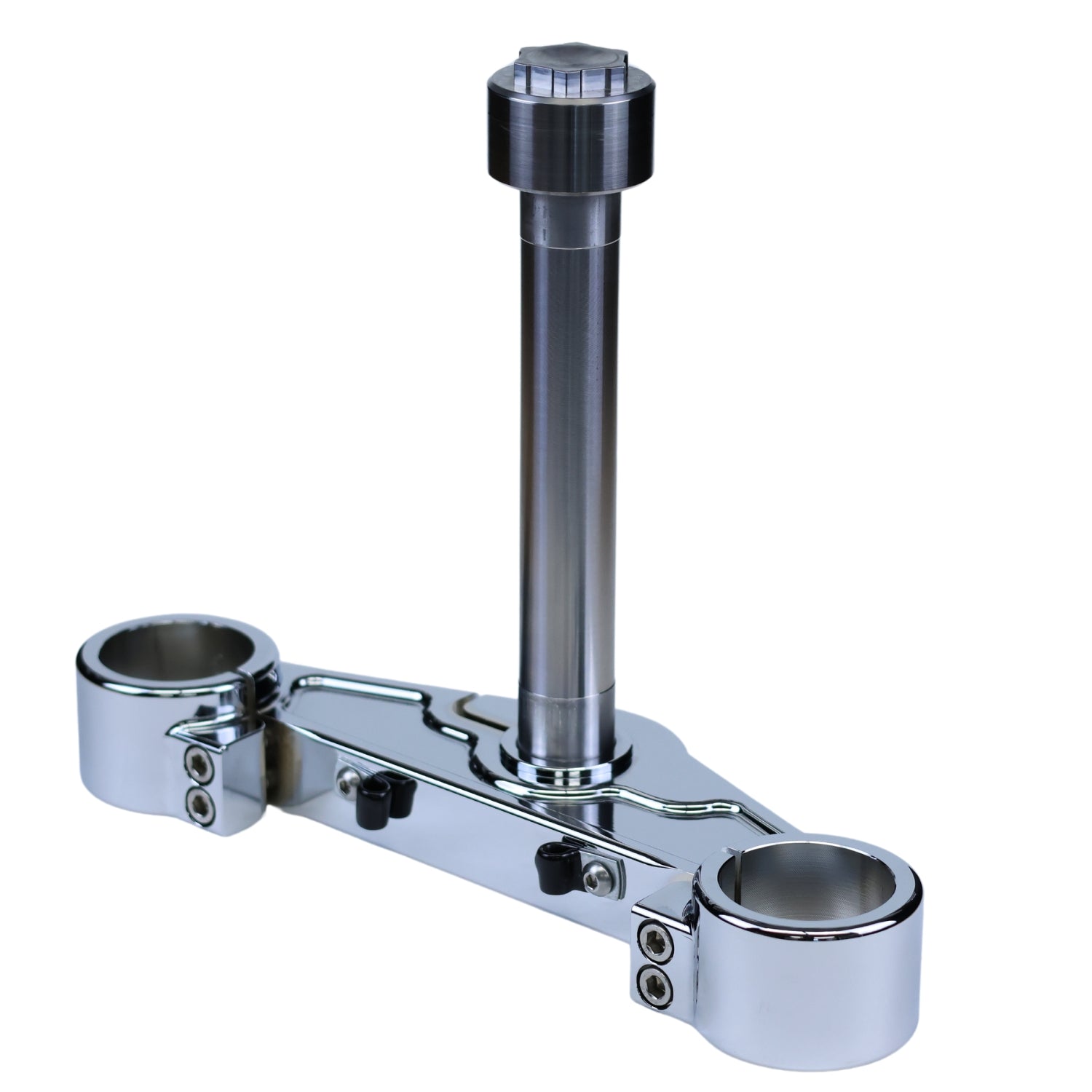

Anodized & Chrome finishes available

Stainless steel hardware included

Includes two brake line(s) management clamps

Fitment

ONLY Fits with our OG Touring CVO Top Triple Tree & OG Touring CVO Drop 1'' Top Triple Tree

Fits all 2023 to present CVO & CVO ST models equipped with an inverted front-end

Fit with Ohlins FGRT 307 Touring CVO Inverted Front Forks

Fits Screamin’ Eagle / Öhlins Inverted Fork Legs Part Number: 45400392 & 45400393

Does not fit Street Glide models due to fairing mount locations

Installation

Click here for installation instructions
