FEULING PARTS Valve Spring Kit - Endurance Beehive with TI Retainers - M8 - 1108
0926-2974
No reviews
Regular price$609.95
/
Valve Spring Kit - Endurance Beehive with TI Retainers - M8
- Made from premium stress-relieved conical ovate wire
- Features extremely high-level of fatigue life
- Uses a much smaller and lighter weight retainer to reduce valve weight and create quicker rev and smoother motion
- Designed to handle the demands of performance engines with 0.585" and smaller lift camshafts

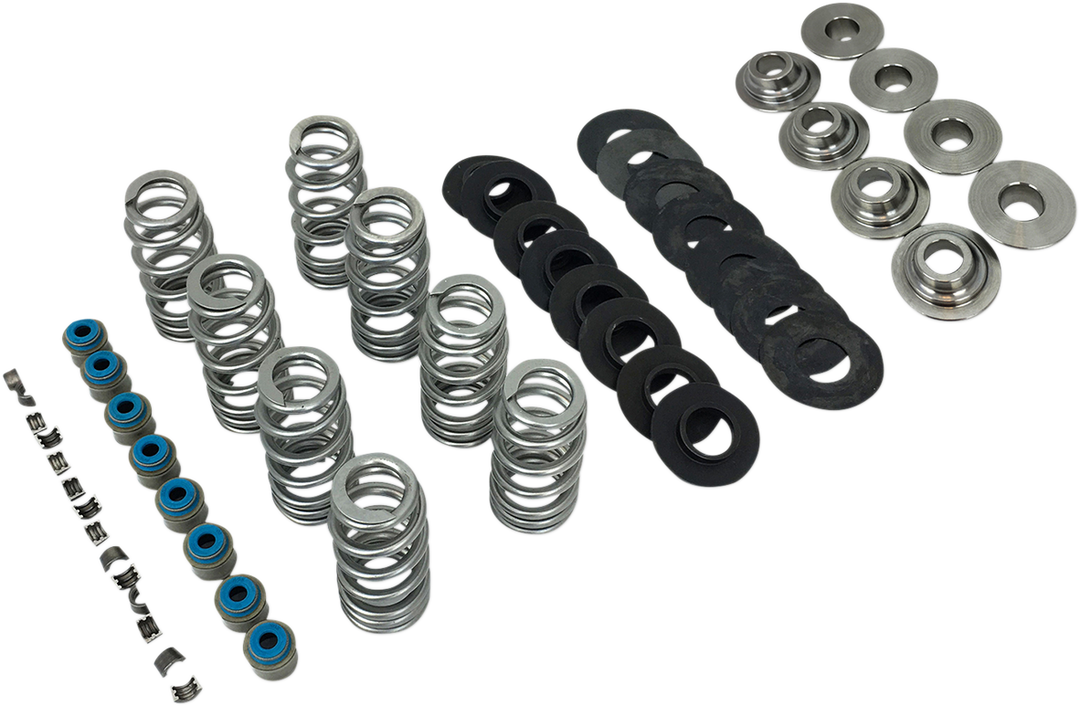

- Kit includes: Econo BeeHive valve springs, lightweight 7 steel retainers, machined heat-treated chromoly spring seats, seat shims, valve locks and a set of premium Viton valve seals equipped with spring-loaded valve stem wiper system
- Seat lb/installed height; 183 lb at 1.770" (0.510" lift)
- 175 lb at 1.795" (0.535" lift)
- 172 lb at 1.813" (0.553" lift)
- 165 lb at 1.835" (0.574" lift)
- 160 lb at 1.845" (0.585" lift)
- 380 lb at 1.260" open height coil bind at 1.190"
- Dyno proven and track tested
- Feuling BeeHive valve springs must be installed at the correct open height, matching max lift to the open height spec of the valve springs
- Made in the USA
- Econo BeeHive kit is direct replacement with no machining or rocker box clearance required for cams up to 0.574" lift for '84-'04 Big Twin and '86-'03 XL and up to .585" lift for '05-'17 Twin Cam.
- Mfg No. 1108
