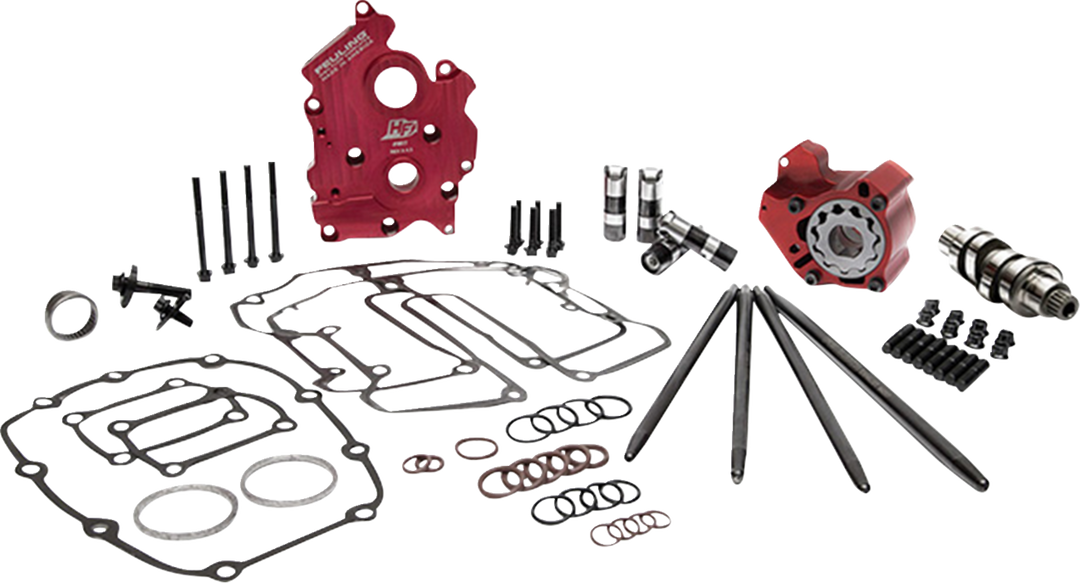

Feuling Camchest Kit - 487 - Chain Drive - Water Cooled - Race Series Lifters - M8 - 7273

Camchest Kit - 487 - Chain Drive - Water Cooled - Race Series Lifters - M8

Features

• 487 Reaper Chain Drive Camshaft, Cam Installation Kit, Race Series Lifters, One Piece Pushrod, Race Series? Oil Pump, High Flow Camplate, and ARP Rocker Studs and Nuts, Camplate/Oil Pump Fasteners are included in this kit
• Bolt In Chain Drive 38° overlap RPM range 2,250 - 6,100 Camshaft for 114" and 117" engine Responds very well to increased bore and or compression Maintains bottom end power and pulls hard above 2,950 rpm when compared to stock
• Bolt In
• Chain Drive
• 38° overlap
• RPM range 2,250 - 6,100
• Camshaft for 114" and 117" engine
• Responds very well to increased bore and or compression
• Maintains bottom end power and pulls hard above 2,950 rpm when compared to stock
• Includes cam bearing, cam/crank hardware and gasket/O-ring kit
• Hydraulic roller lifters, standard OD (0.8420-0.8423) Hydraulic lifters have a full .200 of total travel designed with a slower bleed down rate to handle heavy valve spring pressures
• Hydraulic roller lifters, standard OD (0.8420-0.8423)
• Hydraulic lifters have a full .200 of total travel designed with a slower bleed down rate to handle heavy valve spring pressures
• Heavy duty 7/16 diameter tube with 0.165 wall thickness, precision concentricity, heat treated with a black oxide finish
• Increase oil pressure, scavenge volume and engine oil flow 30% more pressure gear volume over stock 53% more scavenge gear volume over stock 42% more scavenge volume with port sizing, matched passages and holes to the engine case 46% more oil volume to the crankshaft and connecting rod bearing 15°- 25° cooler engine temperatures 15°- 30° cooler oil temperatures 10-30 more PSI of oil pressure Reduces wet sumping, blow by and oily air cleaners Magnets in oil pump to help protect gears and pressure relief valve Rear wheel power gains of 2 horsepower and 2 ft. lb. of torque are achieved.
• Increase oil pressure, scavenge volume and engine oil flow
• 30% more pressure gear volume over stock
• 53% more scavenge gear volume over stock
• 42% more scavenge volume with port sizing, matched passages and holes to the engine case
• 46% more oil volume to the crankshaft and connecting rod bearing
• 15°- 25° cooler engine temperatures
• 15°- 30° cooler oil temperatures
• 10-30 more PSI of oil pressure
• Reduces wet sumping, blow by and oily air cleaners
• Magnets in oil pump to help protect gears and pressure relief valve
• Rear wheel power gains of 2 horsepower and 2 ft. lb. of torque are achieved.
• Billet 7075 aluminum Bolts into stock location Made in the USA
• Billet 7075 aluminum
• Bolts into stock location
• Made in the USA

Manufacturer Part Number: 7273

487 Reaper Camshaft

Notes: Cam specs measured in the engine on the lifter @ 0.050 using a 1.61 rocker arm ratio

Cam Installation Kit

Race Series Lifters

One Piece Pushrod

Race Series Oil Pump

Note: FEULING test results show a 50% reduction of engine sump oil level

High Flow Camplate

Notes: FEULING does not recommend tuning beyond stock emissions standards
