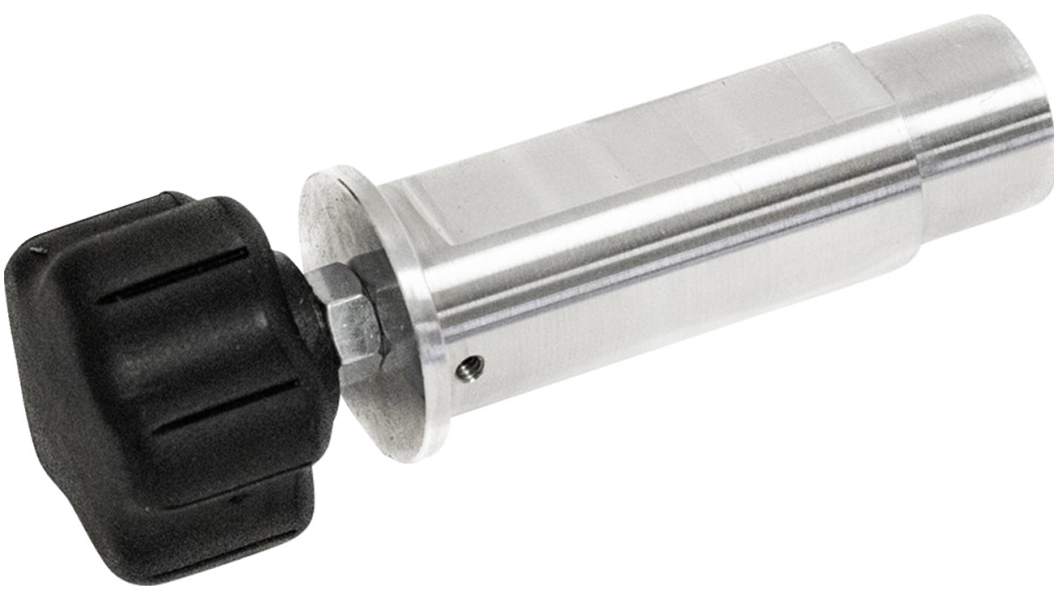

Feuling Oil Pump Gear Alignment Tool - Twin Cam / M8 - 9017
3801-0428
No reviews
Regular price$49.95
/
- Aligns the oil pump gear flats with the flats of the crankshaft
- Feuling recommends assembling the cam plate, oil pump, cam shaft etc together on the bench, lining up the oil pump gear flats with crankshaft flats and installing the complete assembly into the cam chest as one complete unit.
- Twin Cam engines: rotate the crankshaft flats so they are horizontal and align oil pump gear flats horizontal to match.
- M8 engines: rotate the crankshaft flats so they are vertical and align oil pump gear flats vertical to match.
- This procedure has proven to provide the best seal on the back scavenge port of the oil pump to engine case as the parts are always going inwards towards the scavenge port.
Fitments:
| 2023 | Harley-Davidson | Electra Glide Highway King FLHFB | - | - |
| 2022-2023 | Harley-Davidson | CVO Road Glide Limited | - | - |
| 2022-2023 | Harley-Davidson | Softail Low Rider ST FXLRST | - | - |
| 2022-2023 | Harley-Davidson | Road Glide ST FLTRXST | - | - |
| 2022-2023 | Harley-Davidson | Street Glide ST FLHXST | - | - |
| 2022 | Harley-Davidson | Softail Low Rider El Diablo FXRST | - | - |
| 2021 | Harley-Davidson | Electra Glide Revival | - | - |
| 2020-2023 | Harley-Davidson | Softail Low Rider S FXLRS | - | - |
| 2020-2023 | Harley-Davidson | Road Glide Limited FLTRK | - | - |
| 2020-2022 | Harley-Davidson | CVO Tri Glide FLHTCUTGSE | - | - |
| 2019-2020 | Harley-Davidson | FXDR 114 | - | - |
| 2018-2023 | Harley-Davidson | Softail Fat Bob 114 FXFBS | - | - |
| 2018-2023 | Harley-Davidson | Softail Street Bob FXBB | - | - |
| 2018-2023 | Harley-Davidson | Softail Heritage Classic 114 FLHCS | - | - |
| 2018-2023 | Harley-Davidson | Softail Fat Boy 114 FLFBS | - | - |
| 2018-2021 | Harley-Davidson | Softail Sport Glide FLSB | - | - |
| 2018-2021 | Harley-Davidson | Softail Slim FLSL | - | - |
| 2018-2021 | Harley-Davidson | Softail Heritage Classic FLHC | - | - |
| 2018-2020 | Harley-Davidson | Softail Breakout 114 FXBRS | - | - |
| 2018-2020 | Harley-Davidson | Softail Deluxe FLDE | - | - |
| 2018-2020 | Harley-Davidson | Softail Low Rider FXLR | - | - |
| 2018-2019, 2023 | Harley-Davidson | Softail Breakout FXBR | - | - |
| 2018-2019 | Harley-Davidson | Softail Fat Bob FXFB | - | - |
| 2018-2019 | Harley-Davidson | Softail Fat Boy FLFB | - | - |
| 2017-2023 | Harley-Davidson | Road King Special FLHRXS | - | - |
| 2017-2023 | Harley-Davidson | Road King Police FLHP | - | - |
| 2017-2022 | Harley-Davidson | Tri Glide Ultra Classic FLHTCUTG | - | - |
| 2017-2022 | Harley-Davidson | Freewheeler FLRT | - | - |
| 2016-2017 | Harley-Davidson | CVO Pro Street Breakout FXSE | - | - |
| 2016-2017 | Harley-Davidson | Softail Slim S FLSS | - | - |
| 2016-2017 | Harley-Davidson | Fat Boy S FLSTFBS | - | - |
| 2016-2017 | Harley-Davidson | Low Rider S FXDLS | - | - |
| 2015-2023 | Harley-Davidson | Road Glide Special FLTRXS | - | - |
| 2015-2019 | Harley-Davidson | Electra Glide Ultra Limited Low FLHTKL | - | - |
| 2014-2023 | Harley-Davidson | Street Glide Special FLHXS | - | - |
| 2014-2021 | Harley-Davidson | CVO Electra Glide Ultra Limited FLHTKSE | - | - |
| 2014-2016 | Harley-Davidson | Electra Glide Ultra Classic Low FLHTCUL | - | - |
| 2014-2015 | Harley-Davidson | CVO Softail Deluxe FLSTNSE | - | - |
| 2014 | Harley-Davidson | CVO Road King FLHRSE | - | - |
| 2013-2017 | Harley-Davidson | Breakout FXSB | - | - |
| 2013-2014 | Harley-Davidson | CVO Breakout FXSBSE | - | - |
| 2013 | Harley-Davidson | CVO Road Glide Custom FLTRXSE2 | - | - |
| 2013 | Harley-Davidson | CVO Electra Glide Ultra Classic FLHTCUSE8 | - | - |
| 2013 | Harley-Davidson | CVO Road King FLHRSE5 | - | - |
| 2012-2017 | Harley-Davidson | Softail Slim FLS | - | - |
| 2012-2016 | Harley-Davidson | Switchback FLD | - | - |
| 2012, 2018-2023 | Harley-Davidson | CVO Road Glide Custom FLTRXSE | - | - |
| 2012 | Harley-Davidson | CVO Street Glide FLHXSE3 | - | - |
| 2012 | Harley-Davidson | CVO Softail Convertible FLSTSE3 | - | - |
| 2012 | Harley-Davidson | CVO Electra Glide Ultra Classic FLHTCUSE7 | - | - |
| 2011-2013, 2016-2019 | Harley-Davidson | Road Glide Ultra FLTRU | - | - |
| 2011-2013 | Harley-Davidson | Blackline FXS | - | - |
| 2011, 2015-2016 | Harley-Davidson | CVO Road Glide Ultra FLTRUSE | - | - |
| 2011 | Harley-Davidson | CVO Street Glide FLHXSE2 | - | - |
| 2011 | Harley-Davidson | CVO Electra Glide Ultra Classic FLHTCUSE6 | - | - |
| 2011 | Harley-Davidson | CVO Softail Convertible FLSTSE2 | - | - |
| 2010-2023 | Harley-Davidson | Electra Glide Ultra Limited FLHTK | - | - |
| 2010-2013, 2015-2023 | Harley-Davidson | Road Glide Custom FLTRX | - | - |
| 2010, 2015-2023 | Harley-Davidson | CVO Street Glide FLHXSE | - | - |
| 2010 | Harley-Davidson | CVO Softail Convertible FLSTSE | - | - |
| 2010 | Harley-Davidson | CVO Electra Glide Ultra Classic FLHTCUSE5 | - | - |
| 2010 | Harley-Davidson | CVO Fat Bob FXDFSE2 | - | - |
| 2009-2017 | Harley-Davidson | Fat Boy Lo FLSTFB | - | - |
| 2009-2013 | Harley-Davidson | Road King Classic FLHRC | - | - |
| 2009 | Harley-Davidson | CVO Road Glide FLTRSE3 | - | - |
| 2009 | Harley-Davidson | CVO Fat Bob FXDFSE | - | - |
| 2009 | Harley-Davidson | CVO Softail Springer FXSTSSE3 | - | - |
| 2009 | Harley-Davidson | CVO Electra Glide Ultra Classic FLHTCUSE4 | - | - |
| 2008-2017 | Harley-Davidson | Fat Bob FXDF | - | - |
| 2008-2011 | Harley-Davidson | Softail Cross Bones FLSTSB | - | - |
| 2008 | Harley-Davidson | Screamin' Eagle Electra Glide Ultra Classic FLHTCUSE3 | - | - |
| 2008 | Harley-Davidson | Screamin' Eagle Road King FLHRSE4 | - | - |
| 2008 | Harley-Davidson | Screamin' Eagle Dyna FXDSE2 | - | - |
| 2008 | Harley-Davidson | Screamin' Eagle Softail Springer FXSTSSE2 | - | - |
| 2007-2011 | Harley-Davidson | Softail Rocker C FXCWC | - | - |
| 2007-2010 | Harley-Davidson | Softail Rocker FXCW | - | - |
| 2007-2010 | Harley-Davidson | Softail Custom EFI FXSTC | - | - |
| 2007 | Harley-Davidson | Screamin' Eagle Electra Glide Ultra Classic FLHTCUSE2 | - | - |
| 2007 | Harley-Davidson | Screamin' Eagle Road King FLHRSE3 | - | - |
| 2007 | Harley-Davidson | Screamin' Eagle Dyna FXDSE | - | - |
| 2007 | Harley-Davidson | Screamin' Eagle Softail Springer FXSTSSE | - | - |
| 2006-2023 | Harley-Davidson | Street Glide EFI FLHX | - | - |
| 2006-2017 | Harley-Davidson | Street Bob FXDB | - | - |
| 2006 | Harley-Davidson | Super Glide FXD35 | - | - |
| 2006 | Harley-Davidson | Screamin' Eagle Electra Glide Ultra Classic FLHTCUSE | - | - |
| 2006 | Harley-Davidson | Street Glide FLHX | - | - |
| 2006 | Harley-Davidson | Softail Heritage FLST | - | - |
| 2006 | Harley-Davidson | Screamin' Eagle Fat Boy FLSTFSE2 | - | - |
| 2006 | Harley-Davidson | Softail Heritage EFI FLSTI | - | - |
| 2005-2017 | Harley-Davidson | Softail Deluxe EFI FLSTNI | - | - |
| 2005-2014 | Harley-Davidson | Super Glide Custom EFI FXDCI | - | - |
| 2005-2007 | Harley-Davidson | Softail Springer Classic EFI FLSTSCI | - | - |
| 2005-2006 | Harley-Davidson | Softail Springer Classic FLSTSC | - | - |
| 2005-2006 | Harley-Davidson | Softail Deluxe FLSTN | - | - |
| 2005 | Harley-Davidson | Super Glide Custom FXDC | - | - |
| 2005 | Harley-Davidson | Screamin' Eagle Electra Glide FLHTCSE2 | - | - |
| 2005 | Harley-Davidson | Screamin' Eagle Fat Boy FLSTFSE | - | - |
| 2005 | Harley-Davidson | 15th Anniversary Fat Boy FLSTF | - | - |
| 2004-2010 | Harley-Davidson | Super Glide EFI FXDI | - | - |
| 2004-2009, 2014-2017 | Harley-Davidson | Low Rider EFI FXDL | - | - |
| 2004-2007 | Harley-Davidson | Road King Custom EFI FLHRS | - | - |
| 2004-2006 | Harley-Davidson | Road King Custom FLHRS | - | - |
| 2004-2005 | Harley-Davidson | Super Glide Sport EFI FXDXI | - | - |
| 2004 | Harley-Davidson | Screamin' Eagle Electra Glide FLHTCSE | - | - |
| 2004 | Harley-Davidson | Screamin' Eagle Deuce FXSTDSE2 | - | - |
| 2003 | Harley-Davidson | Screamin' Eagle Road King FLHRSE-I2 | - | - |
| 2003 | Harley-Davidson | Screamin' Eagle Deuce FXSTDSE | - | - |
| 2002 | Harley-Davidson | Screamin' Eagle Road King FLHRSE-I | - | - |
| 2002 | Harley-Davidson | Wide Glide FXDWG3 | - | - |
| 2001-2017 | Harley-Davidson | Softail Heritage Classic EFI FLSTCI | - | - |
| 2001-2017 | Harley-Davidson | Softail Fat Boy EFI FLSTFI | - | - |
| 2001-2012 | Harley-Davidson | Softail Standard EFI FXSTI | - | - |
| 2001-2009 | Harley-Davidson | Softail Night Train EFI FXSTBI | - | - |
| 2001-2007 | Harley-Davidson | Softail Deuce EFI FXSTDI | - | - |
| 2001-2006 | Harley-Davidson | Softail Springer EFI FXSTSI | - | - |
| 2001-2003 | Harley-Davidson | Softail Heritage Springer EFI FLSTSI | - | - |
| 2001-2003 | Harley-Davidson | Super Glide T-Sport FXDXT | - | - |
| 2001 | Harley-Davidson | Screamin' Eagle Road Glide FLTRSE-I2 | - | - |
| 2001 | Harley-Davidson | Wide Glide FXDWG2 | - | - |
| 2000-2009, 2019-2022 | Harley-Davidson | Electra Glide Standard EFI FLHTI | - | - |
| 2000-2008, 2010-2017 | Harley-Davidson | Wide Glide EFI FXDWGI | - | - |
| 2000-2006, 2020-2023 | Harley-Davidson | Softail Standard FXST | - | - |
| 2000-2006 | Harley-Davidson | Softail Deuce FXSTD | - | - |
| 2000-2006 | Harley-Davidson | Softail Springer FXSTS | - | - |
| 2000-2006 | Harley-Davidson | Softail Night Train FXSTB | - | - |
| 2000-2006 | Harley-Davidson | Softail Heritage Classic FLSTC | - | - |
| 2000-2006 | Harley-Davidson | Softail Fat Boy FLSTF | - | - |
| 2000-2003 | Harley-Davidson | Softail Heritage Springer FLSTS | - | - |
| 2000 | Harley-Davidson | Screamin' Eagle Road Glide FLTRSE-I | - | - |
| 1999-2023 | Harley-Davidson | Electra Glide Police FLHTPI | - | - |
| 1999-2022 | Harley-Davidson | Road King EFI FLHR | - | - |
| 1999-2019 | Harley-Davidson | Electra Glide Ultra Classic EFI FLHTCUI | - | - |
| 1999-2013 | Harley-Davidson | Road King Classic EFI FLHRC | - | - |
| 1999-2013 | Harley-Davidson | Electra Glide Classic EFI FLHTCI | - | - |
| 1999-2009 | Harley-Davidson | Road Glide EFI FLTR | - | - |
| 1999-2006 | Harley-Davidson | Road Glide FLTR | - | - |
| 1999-2006 | Harley-Davidson | Electra Glide Classic FLHTC | - | - |
| 1999-2006 | Harley-Davidson | Electra Glide Standard FLHT | - | - |
| 1999-2006 | Harley-Davidson | Electra Glide Ultra Classic FLHTCU | - | - |
| 1999-2006 | Harley-Davidson | Road King FLHR | - | - |
| 1999-2006 | Harley-Davidson | Electra Glide Police FLHTP | - | - |
| 1999-2006 | Harley-Davidson | Wide Glide FXDWG | - | - |
| 1999-2006 | Harley-Davidson | Low Rider FXDL | - | - |
| 1999-2006 | Harley-Davidson | Super Glide FXD | - | - |
| 1999-2005 | Harley-Davidson | Super Glide Sport FXDX | - | - |
| 1999-2000 | Harley-Davidson | Dyna Convertible FXDS-CONV | - | - |
